Practical, Powerful, Portable

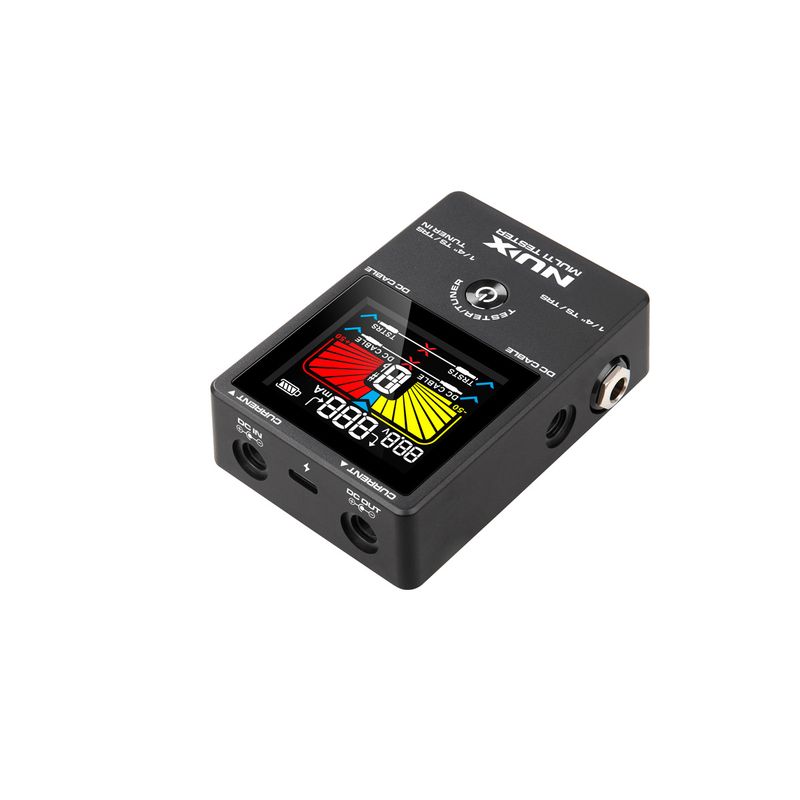

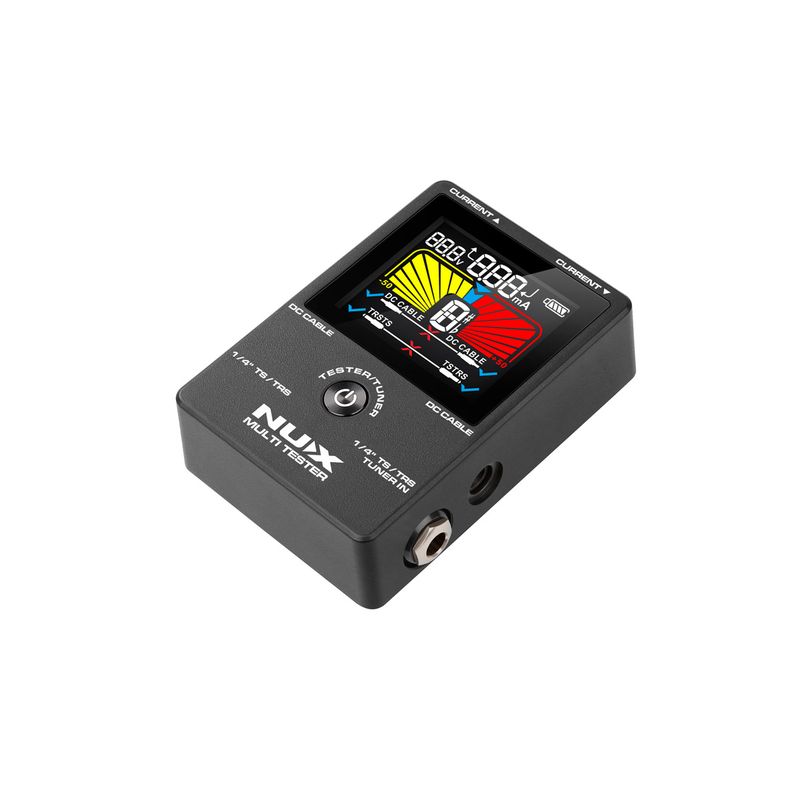

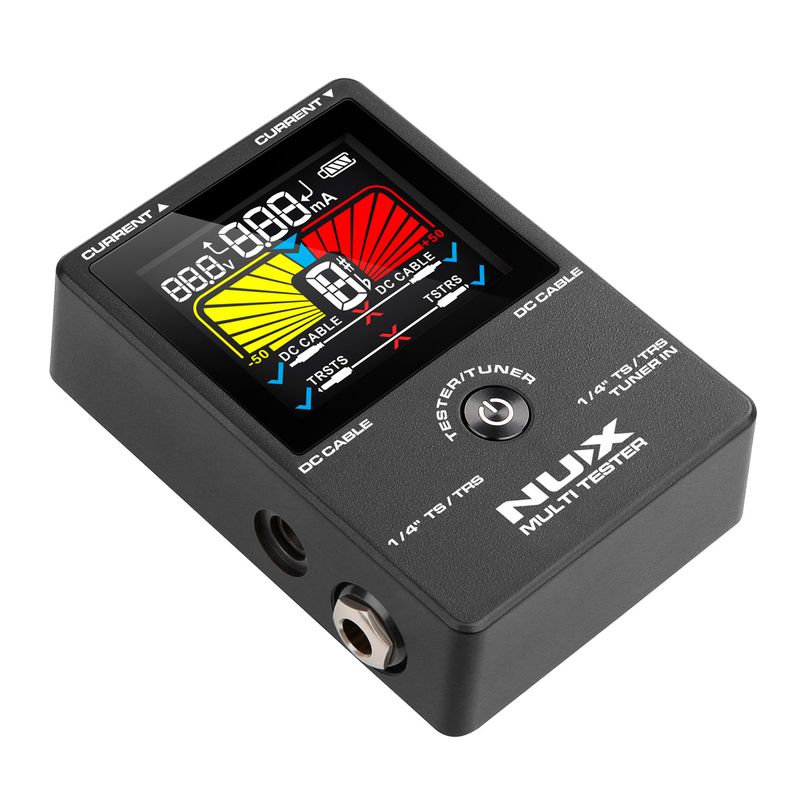

The NUX NMT-1 is a 4-in-1 compact multi-tester. It features the patch cable tester, DC cable tester, pedal
current and voltage meter, and tuner functions. This incredibly portable device is the perfect companion for
players in daily use and stage performances.
Patch cable & DC cable tester
The NMT-1 can be used for both ¼" TS & TRS audio cables and 2.1mm DC power cables.
With NMT-1, you can effortlessly test your solderless patch cables for correct connections and shorts.

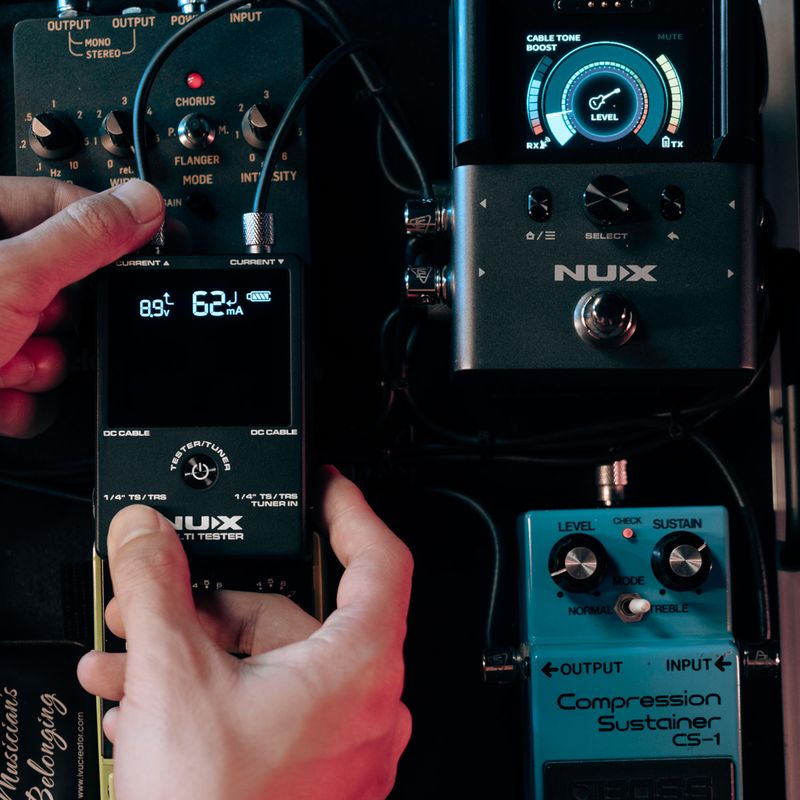

Pedal current & voltage meter
No more confused by the inaccurate current information. Plug your pedal into NMT-1 and you'll know how much
current it really needs and set your pedal accordingly.
Chromatic Tunerv
As a bonus function, the NMT-1 can be used as a Chromatic tuner. No need to carry an extra tuner by your side,
the NMT-1 can solve everything.

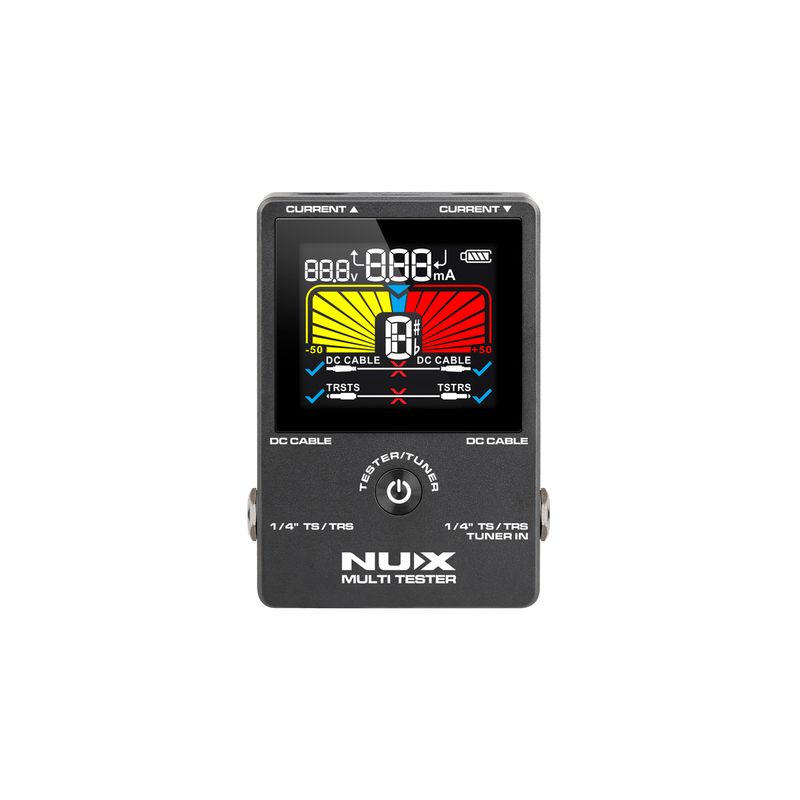

Portable size, with a large and intuitive display
The easy-to-take design is perfect for last-time checking before going to the gig. It's so handy that you even
can carry it in your pocket.
With the bright and large display, you can read the information easily wherever you are.
Easily charging through USB-C port
With the built-in Li-on battery, you can charge the NMT-1 with the USB-C port conveniently.
Pedal current & voltage meter
- lnput voltage range: 9-28V DC
- Max current displayed: 2A
- Protection:
The over-voltage warning will be shown when the input voltage exceeds 30V.
The over-current warning will be shown when the input current exceeds 2.1A.
Tuner
- Tuning range: A0(27.5Hz)-C8(4186.0Hz)
- Tuning mode: Chromatic
- Tuning accuracy: ±1 cent
Others
- Power: Built-in Li-on battery, charge through USB-C port
- Dimensions: 95mm(L) x 71mm(W) x 30mm(H)
- Weight: 125g
Accessories
- USB-C charging cable x 1
- 2.1mm DC cable x 1
