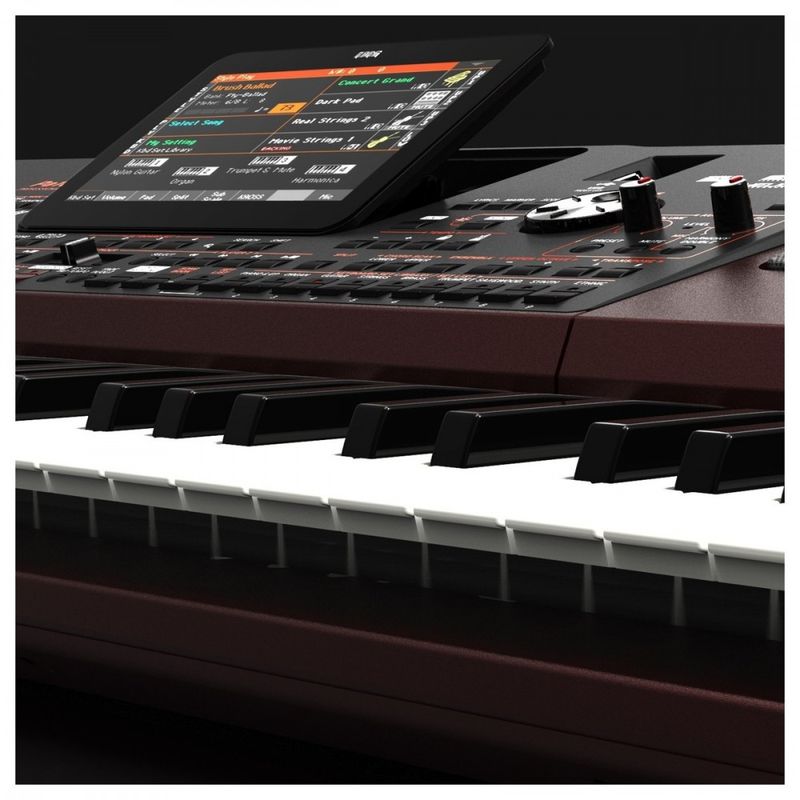

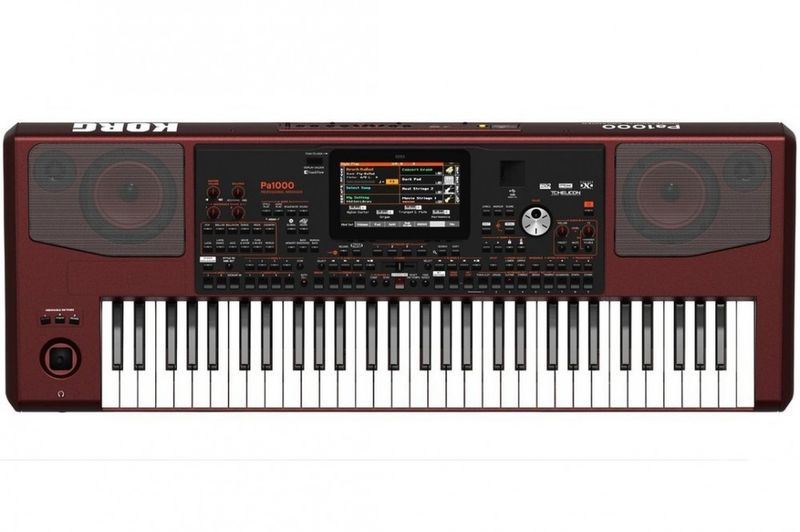

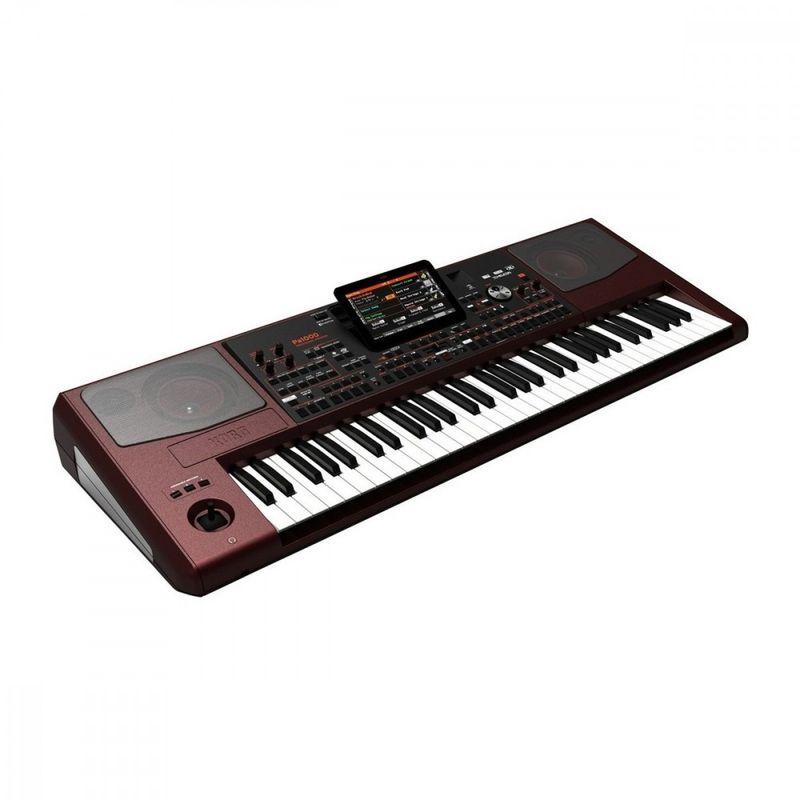

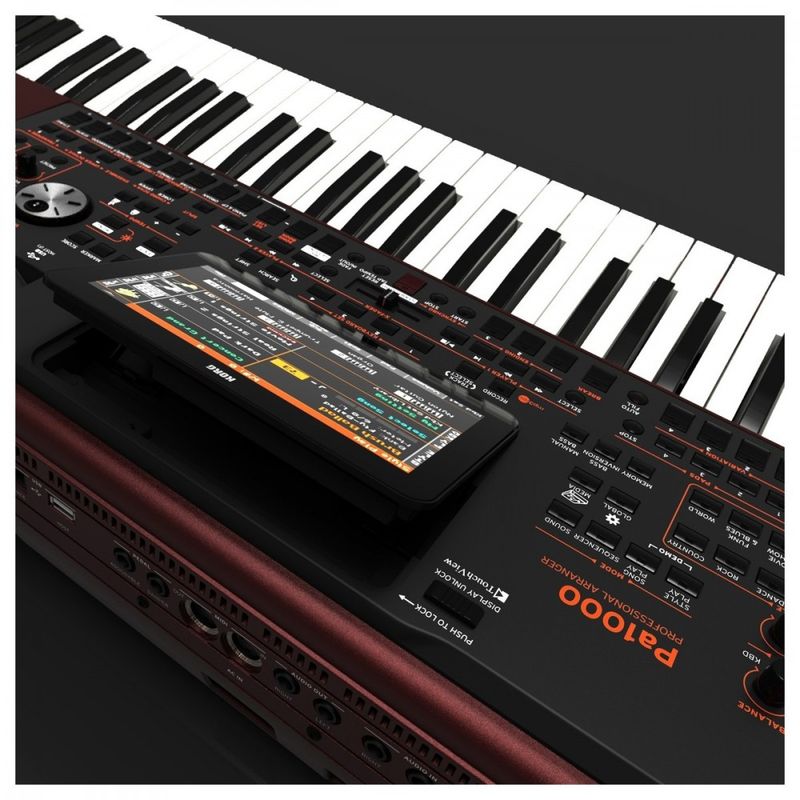

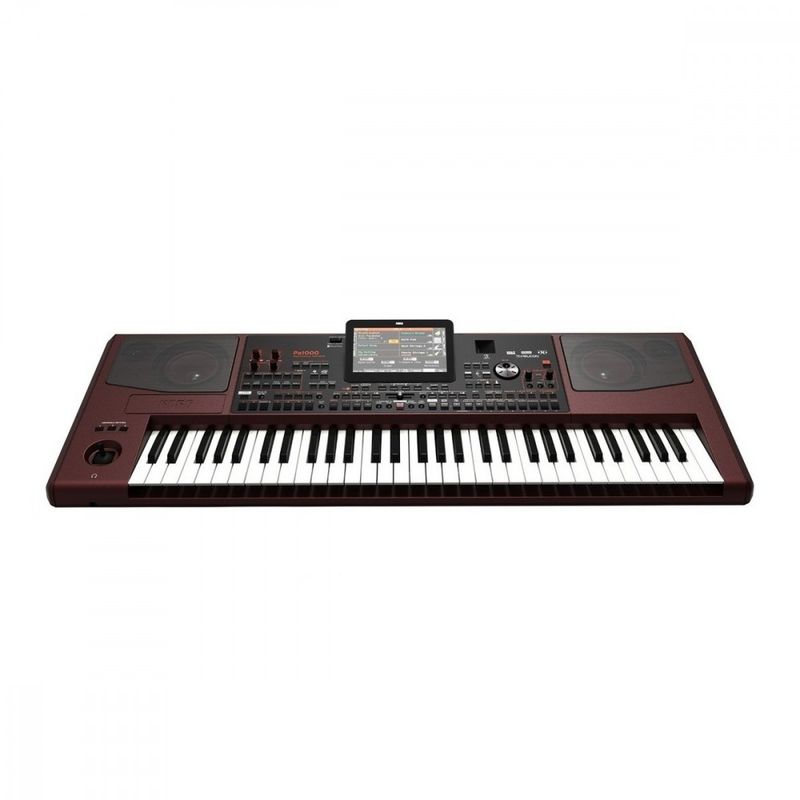

KORG PA1000 Arranger Keyboard

Features

• Enhanced EDS-X (Enhanced Definition Synthesis-eXpanded) sound engine offers improved realism and vivid sound
• Massive internal ROM – plus up to 600 MB of user PCM compressed data – provides a powerful wave memory, delivering the best sound quality possible
• DNC - Defined Nuance Control - ensures total control for the sound articulations
• 61 key semi–weighted keyboard with velocity and aftertouch
• Big TouchView™ 7'' TFT display with adjustable manual tilt
• Easy layout and improved graphical interface with a Search function for quickly locating musical resources
• The 2-way speaker system ensures a powerful and clear sound
• Over 430 Factory Styles, each with 4 variations and 4 Fill Ins + Break, plus 12 banks in each of the User/Direct banks for unlimited storage of your favourite customised or user created Styles and settings
• Multiple internal effects processors
• TC-Helicon 3-voice Vocal Processor with 5 dedicated effects
• Double MP3/MIDI file players with recording capability, X-Fader and Vocal Remover
• The Detect Chord function scans the MIDI Song’s tracks for chords, then saves them as Chords events to be read in the Lyrics or Score page
• 512 User Sound locations, 256 User Drum Kit locations
• MIDI connection can now also be done through the USB HOST ports (in addition to the USB DEVICE and the MIDI ports)
• Easy connection of controllers digital pianos (e.g Korg HAVIAN 30), or the KORG nano and micro series, with no need of special adapters
• MicroSD card slot (card not included) allows for mass storage and data protection

Specifications

• Keys: 61 (C2 - C7)
• Key Action: Semi-Weighted
• Key Sensitivity: Velocity and Aftertouch
• Sound Generator: EDS-X - Enhanced Definition Synthesis eXpanded
• Polyphony: 128 Voices and 128 Oscillators
• Supported Song Formats: MID, KAR, MP3+Lyrics, MP3+G
• Speaker Amplifier: 2 x 33W
• Speakers: 2 x 4'' Bass Reflex Woofers + 2 x 1'' Dome Tweeter
• Control Inputs: Damper Pedal
• Audio Inputs:
  • Line: 1/4'' Jacks (Left/Right)
  • Mic/Guitar: 1/4'' Jack with Gain Control
• Audio Outputs:
  • Left/Right: 1/4'' Jack
  • Headphone Output: 1/4'' Jack
• MIDI: Standard Connectors, Input + Output
• USB: 2.0 High-Speed, 480Mbit/s
  • Type A: HOST, Front/Rear
  • Type B: DEVICE, Rear
• Internal Memory: 960MB
• Display: 7'' Wide Capacitive Colour TouchView™ TFT Display
• Power Supply: 100V - 240V, 50Hz/60Hz
• Dimensions: 1030mm x 378.3mm x 133mm / 40.55'' x 14.89'' x 5.36'' (W x D x H)
• Weight: 10.75kg / 23.7lbs

Effects

• Accompaniment/Song: 148 Types
  • 2 Insert Effects
  • 2 Master Effects
• Keyboard Sounds: 148 Types
  • 1 Insert Effects
  • 2 Master Effects
• Final Mastering Effects:
  • Limiter
  • Master EQ
• Voice Processor:
  • EQ
  • Compressor
  • Gate
  • 3-Voice Harmonizer (or Double)
  • 2 x FX Harmonizer
  • Double: Technology by TC Helicon®
• Presets: 30 Factory + 64 User
• Guitar Processor: 3 x FX
  • Presets: 45 Factory + 64 User

Sounds/Drum Kits

• Factory: >1750 Sounds
  • Including Multilayer Stereo Pianos with Damper and Body Resonance, GM/XG Sound Sets and 107 Drum Kits
• User: 512 Sounds + 256 Drum Kits
• Digital Drawbars:
  • 9 Footages
  • Percussion
  • Key On/Off
  • Leakage
  • Rotary Speaker Effect
  • DNC - Definied Nuance Control

Sampling

• PCM Memory: 300MB Compressed (Equivalent to 600MB Linear Data
• Formats:
  • Loading: KORG, WAV, AIFF and SoundFont™
  • Saving: KORG, WAV and AIFF
• Functions:
  • Full Edit
  • Time Slice
  • Sampling

Styles

• Factory: >430, Freely Reconfigurable Sets
• User: 1152 Locations
• Banks: User + Direct

Keyboard Set Library

• Memory: Keyboard Sound Settings
• Factory: >300 Keyboard Sets, Freely Reconfigurable
• User: 864 Locations, Including User + Direct Banks
