The Korg Minilogue XD is the next generation in sound synthesis and design. The Minilogue´s intuitive
design offers newcomers a great starting point for their journey into analog sound design. The four
different voice modes add a huge amount of scope for sound design. The Minilogue also features a
very powerful digital multi-engine effects unit, a sequencer, and micro-tuning functionality.
The number of sonic possibilities is endless and with its excellent design, the Minilogue is a joy to play
and experiment with, with no physical barriers to making the sounds you hear in your head into a
reality. It also comes with a 16-step sequencer that´s excellent for creating explosive sonic movements
or for live performances.
The Minilogue has a very deep set of extra features that really help it shine. The joystick, the voice
mode, micro-tuning, and the helpful and great looking oscilloscope display. If you´re after a
synthesizer that will keep you coming back for more and features an infinite amount of uses, then look
no further than the Korg Minilogue XD. True power, in a compact, sleek form.
| Antall Tangenter | 37 |
- Keyboard: 37-keys (Slim-key, velocity sensitive)
- Sound Generation: Analog sound generator + Multi digital sound generator (Noise, VPM, User)
- Maximum Polyphony:
- 4 voices Programs 500 voices (more than 200 preload, 300 user programs)
- Each program provides a program sort function that includes voice mode settings. Favorite function built in.
- Voice Mode:
- 4 (POLY, UNISON, CHORD, ARP / LATCH)
- The VOICE MODE DEPTH setting allows different parameters to be varied for each mode
- Sequencer:
- 16-step polyphonic sequencer
- Motion sequence can be used on up to four parameters
- Main Synthesis Parameters: VCO1 WAVE (SAW, TRIANGLE, SQUARE), OCTAVE, PITCH, SHAPE
- VCO2: Wave (Saw, Triangle, Square) Octave, Pitch, Shape
- Modulation: Sync, Ring, Cross Mod Depth
- Multi Engine: Noise/VPM/User, Type
- Mixer: VCO1, VCO2, Multi
- VCF: Cutoff, Resonance, Drive, Keytrack
- AMP Envelope Generator: Attack, Decay, Sustain, Release
- Envelope Generator: Attack, Decay, EG INT, Target, (Pitch, Pitch2, Cutoff)
- LFO: Wave (Saw, Triangle, Square) Mode (BPM, Normal, 1-shot) Rate, Int, Target (Pitch, Shape, Cutoff)
- Main effect Parameters: Effect type (Modulation, Reverb, Delay), ON/OFF, Time, Depth
- Multi Engine:
- Noise Generator: 4 types
- VPM oscillator: 16 types
- User oscillator: 16 slots
- MOD EFFECTS:
- CHORUS: 8 types
- ENSEMBLE: 3 types
- PHASER: 8 types
- FLANGER: 8 types
- DELAY: 12 types
- REVERB: 10 types
- Controls: Joy stick that can modify different parameters for each program, PORTAMENTO knob
- Display:

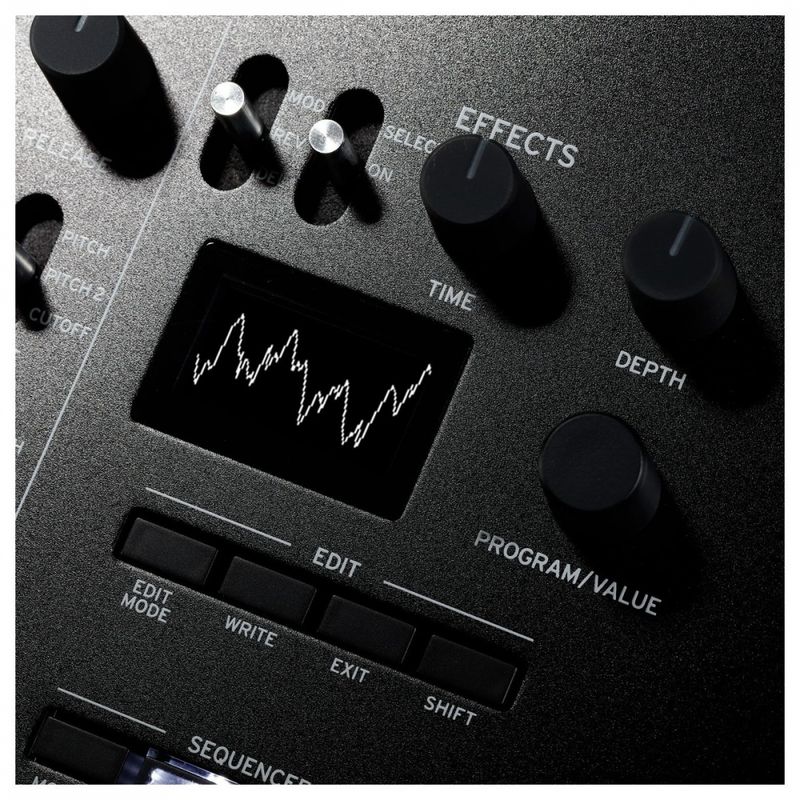

- Main: Real-time OLED oscilloscope provides visual feedback of parameter changes

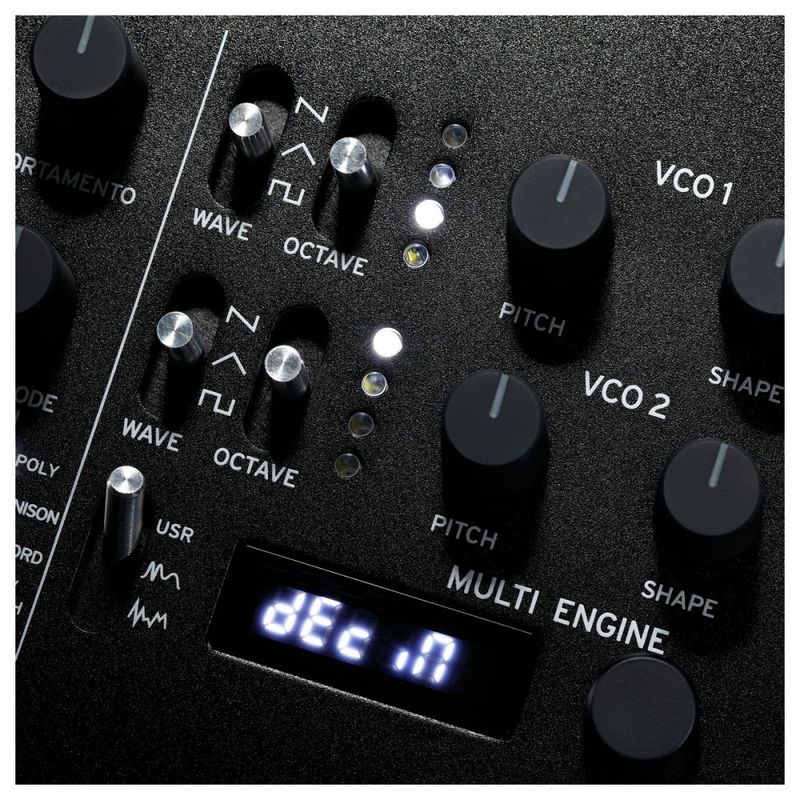

- Multi engine section: 7 segments x 6 digit LED display

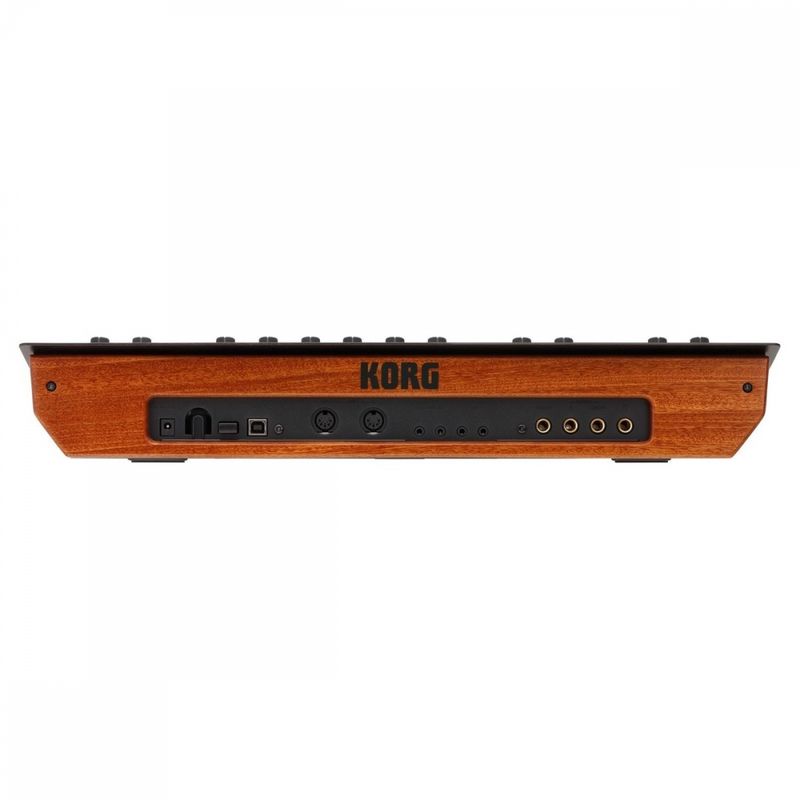

- Input/Output connectors:
- Headphone jack (Stereo phone jack)
- OUTPUT L/MONO, R jacks (monaural phone jack unbalanced)
- CV IN 1, CV IN 2 jacks (3.5 mm [1/8"] monoural mini jack, Input voltage: -5 V – +5 V (Modulation mode), -3V – +5 V (CV/Gate mode)
- SYNC IN jack (3.5 mm [1/8"] mini jack, maximum input level 20 V)
- SYNC OUT jack (3.5 mm [1/8"] mini jack, output level 5 V)
- MIDI IN jack
- MIDI OUT jack
- USB B jack
- Damper jack (half damper is not supported)
- Power Supply: AC adapter (DC9 V) (included)
- Power Consumption: 8 W
- Dimensions (W x D x H): 500 mm x 300 mm x 85 mm / 19.69" x 11.81" x 3.35"
- Weight: 2.8 kg / 6.17 lbs.
