Neste generasjons LSR305, med wave guide hentet fra flaggskipet M2. Pris pr stk.

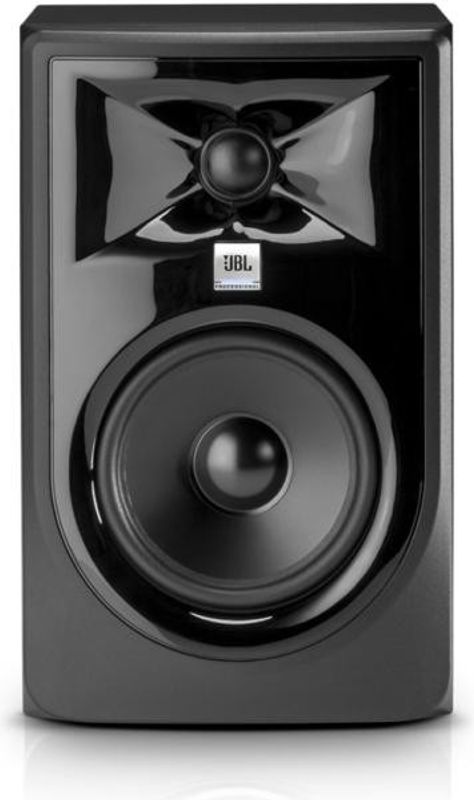

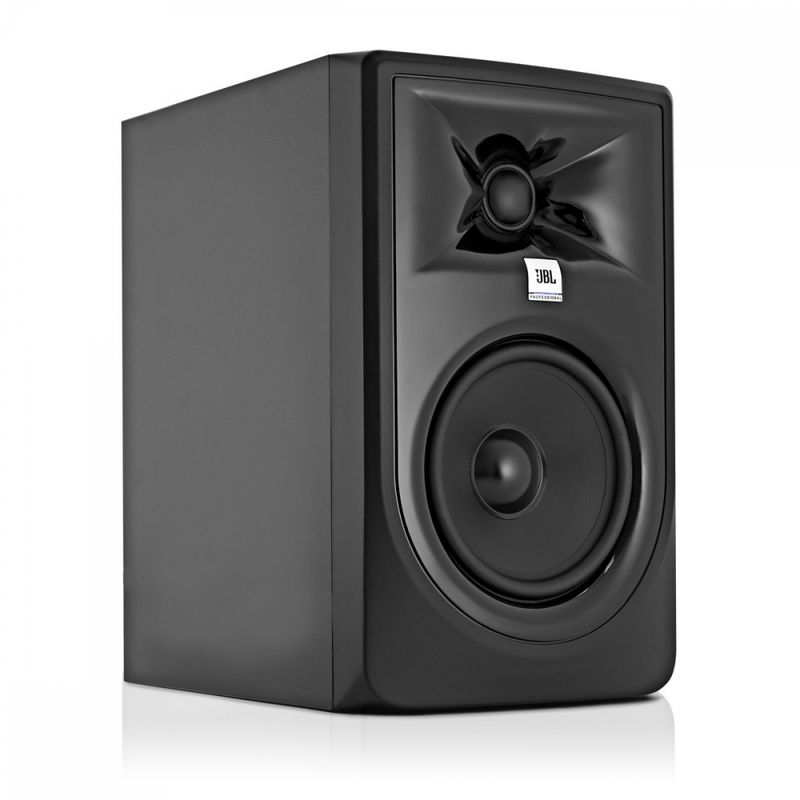

JBL LSR305P MkII er en kompakt, aktiv studiomonitor, med 5" og tweeter.
Til tross for sin lille størrelse, har den en imponerende fyldig lyd, med en bassrespons helt ned til 43 Hz (+/- 3 dB @ 49 Hz).
Det som skiller LSR 3-serien fra andre studiomonitorer i samme prisklasse, er den patenterte waveguiden (Image Control Wave Guide), hentet fra flaggskipet M2.
Denne har en fysisk utforming som gir et ekstremt definert og presist stereobilde.

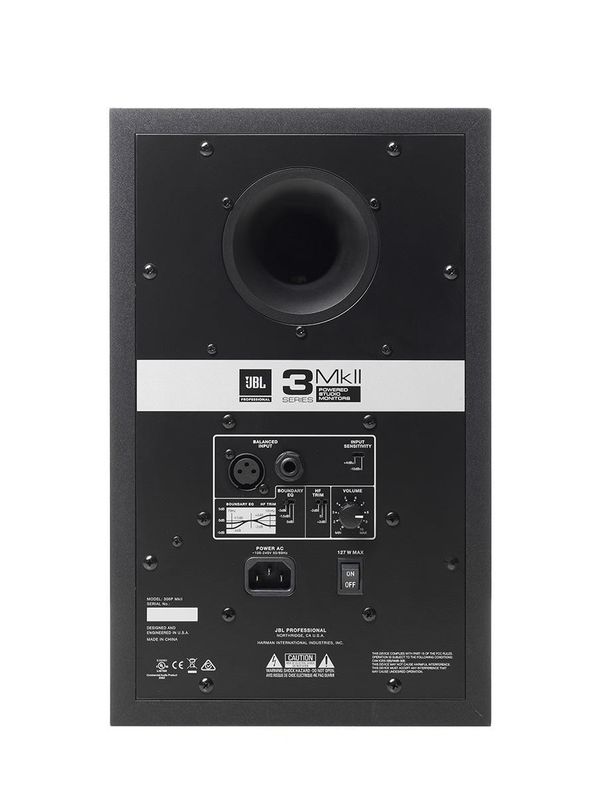

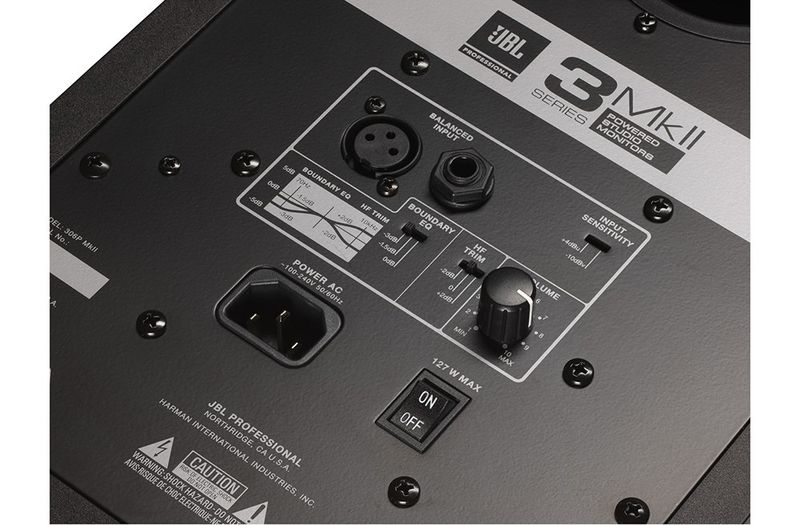

Alle modeller har innganger på XLR og TRS Jack, med valg for inngangssensitivitet og brytere for +/- 2 dB HF og LF trim.
| LF DRIVER SIZE | 203mm (5") | |
| HF DRIVER SIZE | 25mm (1") | |
| HF DRIVER TYPE | Soft dome | |
| CROSSOVER | 1725Hz 4th order acoustic Linkwitz-Riley | |
| MAGNETICALLY SHIELDED | Yes | |
| INPUT SENSITIVITY (-10dBV INPUT) |
92dB / 1m | |
| POWER CONFIGURATION | Bi-amplified | |
| HF DRIVER POWER AMP | 41W, Class-D | |
| LF DRIVER POWER AMP | 41W, Class-D | |
| FREQUENCY RESPONSE (±3dB) | 49Hz – 20kHz | |
| FREQUENCY RANGE (-10dB) | 43Hz – 24kHz | |
| LOW FREQUENCY EXTENSION (-10dB) | 43Hz | |
| MAXIMUM CONTINUOUS SPL | 94dB | |
| MAXIMUM PEAK SPL | 108dB | |
| MAXIMUM PEAK INPUT LEVEL (-10dBV / +4dBu) |
+6dBV / +20.3dBu | |
| SYSTEM DISTORTION CRITERIA | <10% THD at maximum output with full compressor / limiter engagement | |
| ELECTRICAL DISTORTION CRITERIA | 0.2% THD @ 1kHz / 2.83VRMS output; <1% THD @ 1kHz, full rated output | |
| SIGNAL TO NOISE RATIO | 75dBA (A-Weighted), 70dBr (unweighted), relative to 2.83VRMS output | |
| COVERAGE HORIZONTAL x VERTICAL |
120° x 90° | |
| ANALOG INPUT TYPES | 1 x XLR female, 1 x TRS female, balanced | |
| HF TRIM CONTROL | -2dB, 0dB, +2dB | |
| BOUNDARY EQ | LF Shelf @ 50Hz: -3dB, -1.5dB, 0dB | |
| AC INPUT VOLTAGE | 100 – 240VAC (±10%), 50 / 60Hz | |
| ENCLOSURE TYPE | Ported | |
| ENCLOSURE CONSTRUCTION | 15mm MDF | |
| ENCLOSURE FINISH | Matte black PVC | |
| BAFFLE CONSTRUCTION | Injection-molded structural ABS | |
| CABINET DIMENSIONS (H x W x D) |
298 x 185 x 231mm (11.7" x 7.3" x 9.1") | |
| DISPLAY CARTON (H x W x D) | 354 x 244 x 299mm (13.9" x 9.6" x 11.8") | |
| SHIPPING CARTON (H x W x D) | 373 x 260 x 315mm (14.7" x 10.2" x 12.4") | |
| NET WEIGHT | 4.73 kg (10.43 lbs) | |
| SHIPPING GROSS WEIGHT | 5.72 kg (12.61 lbs) |
