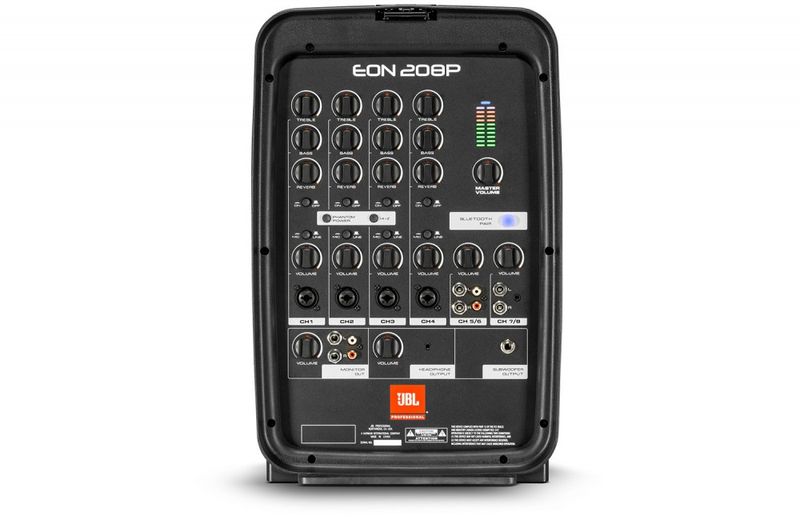

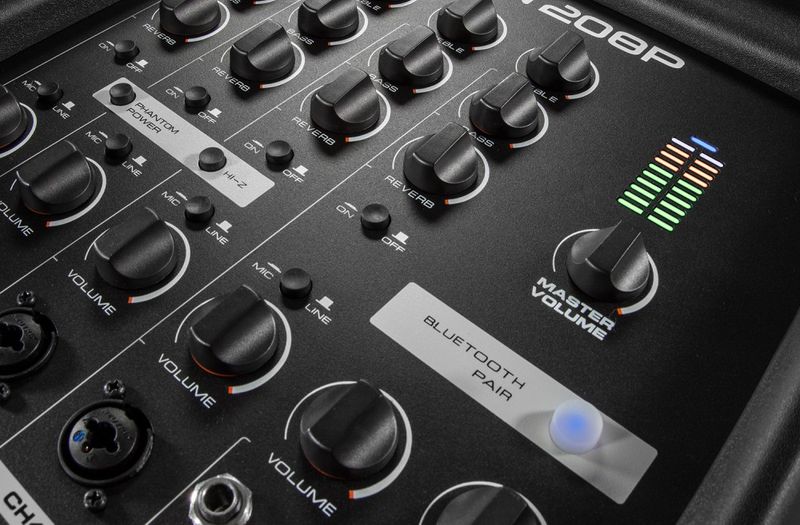

The 208P features an 8-channel mixer for a variety of applications.
Channels 1-4 can accept either a 1/4 inch instrument cable or an XLR cable and have volume, reverb, treble and bass control.
Additionally, channels 1-3 allow for both phantom power and Hi-Z input.
Channels 5 and 6 accept either a stereo pair of 1/4 inch TRS plugs or stereo RCA cables. Channels 7 and 8 accept a stereo 3.5mm input for mobile devices like phones, tablets or Bluetooth streaming audio from any compatible device.
The 208P also offers a highly-robust output section, allowing separate channels to run monitors, headphones and a subwoofer channel at the same time.

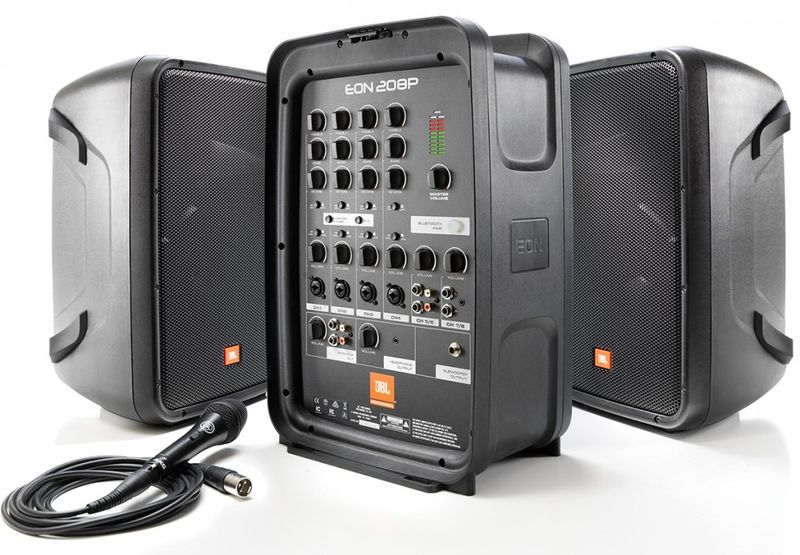

System Type Portable 2-way full-range loudspeakers with powered mixer
Maximum SPL Output 121 dB peak
Frequency Range (-10 dB) 60 Hz - 20 kHz
Frequency Response (+/-3 dB) 70 Hz - 18 kHz
AC Input 100-120 V, 220-240 V 50/60 Hz
Amp Design Class D
System Power Rating 300 W (2x 150 W stereo)
Output Connector 2 x 1/4" TS (unbalanced) amplifier outputs
Channels 1-4: XLR/1/4" jack combo connectors
5-6: one pair of 1/4" balanced TRS jacks (stereo), and one pair of RCA jacks (stereo)
7-8: one pair of 1/4" balanced TRS jacks (stereo), and a 3.5mm stereo jack
Phantom Power CH1 and CH2 have phantom power control and share the same selection switch
Hi-Z Selection CH3 has a Hi-Z selection switch used for guitar signal input
Mixer Output Connectors Monitor Out: one pair of RCA jacks (stereo), and one pair of 1/4" balanced TRS jacks (stereo)
Headphone Out: 3.5mm stereo jack
Subwoofer Out: 1/4" balanced TRS jack
Treble/Bass EQ Per-channel high- and low-shelf filters; +/- 12dB cut and boost
System Limiter On-board DSP limiting

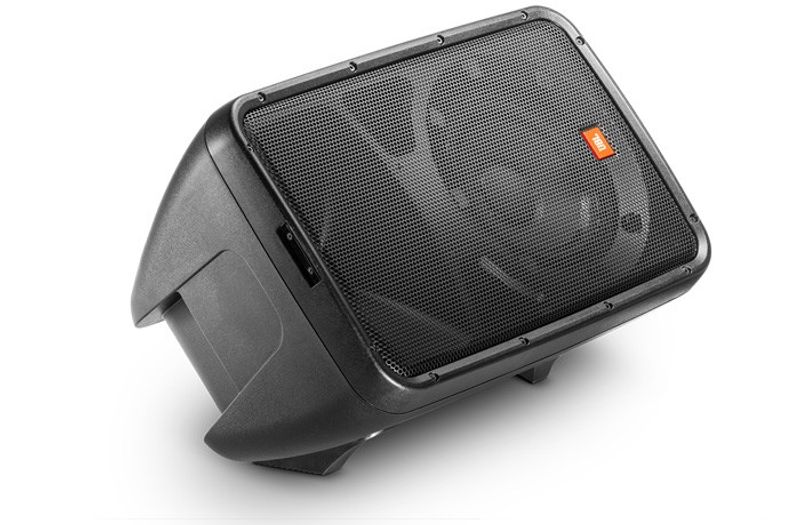

LF Driver 1x JBL 8" (203mm) woofer
HF Driver 1x 1" Neodymuim black aluminum dome tweeter
Coverage Pattern 100° horizontal x 60° vertical
Crossover Frequency 2 kHz
Crossover Type 2-way passive network, 2nd order filters (12dB cutoff per octave)
Enclosure Polypropylene
Suspension/Mounting 36 mm pole socket
Handles One on top
Speaker Grille Powder-coated perforated steel
