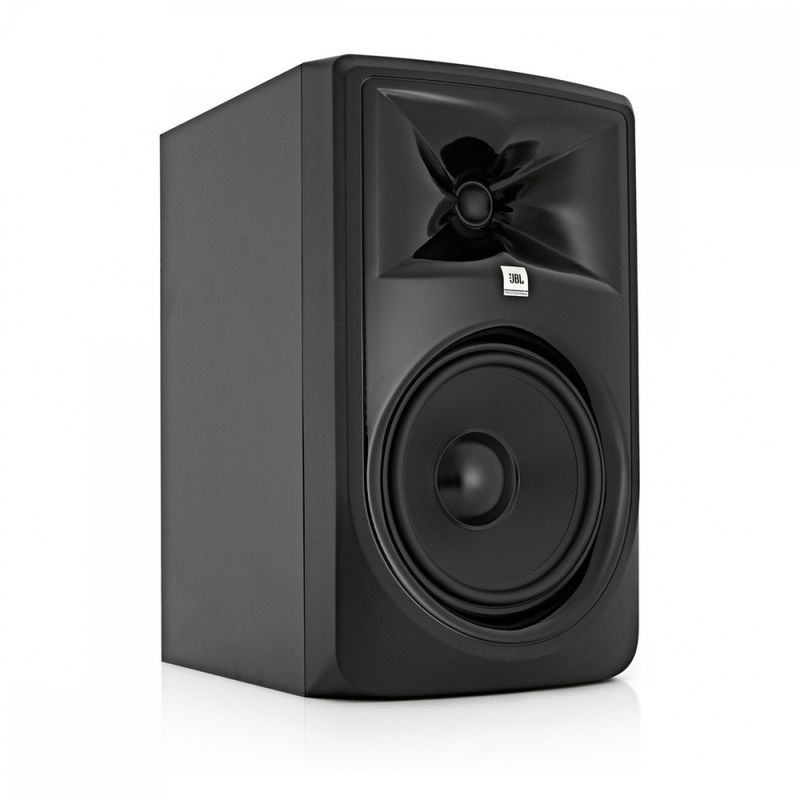

With the revolutionary JBL Image Control Waveguide and refined transducers, JBL 308P MkII offers stunning detail, precise imaging, a wide sweet spot and impressive dynamic range that enhances the mix capabilities of any modern workspace. Leveraging patented technologies derived from the JBL 7 Series and M2 Master Reference Monitors and sporting a sleek, modern design, JBL 308P MkII delivers outstanding performance and an enjoyable mix experience at an accessible price.
Features

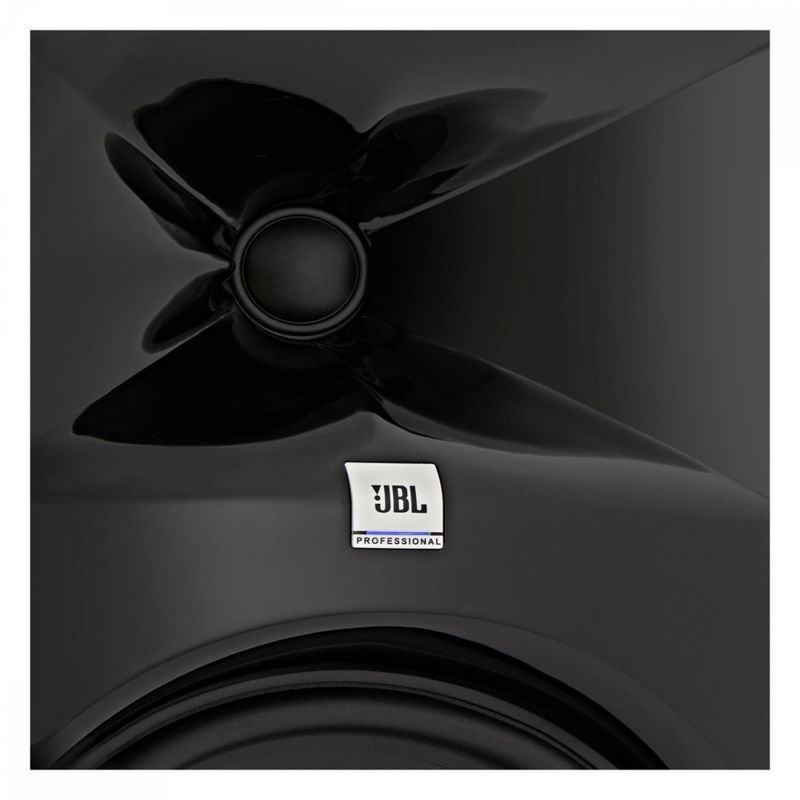

- Patented Image Control Waveguide for detailed imaging and a broad, room-friendly sweet spot
- Next-generation JBL transducers for optimized transient response and improved linearity

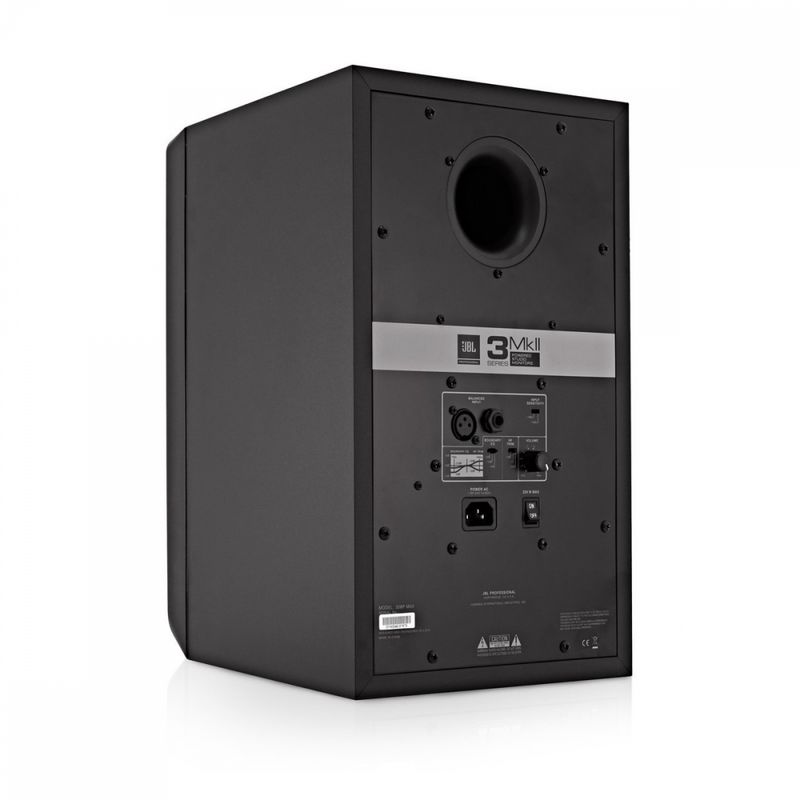

- Patented Slip Stream™ low-frequency port for superior bass performance at all playback levels
- Dual integrated, custom Class-D amplifiers provide 112 watts of power for high output and dynamic range
- New Boundary EQ settings compensate for low frequency variants introduced by the environment
- HF Trim switch adjusts high-frequency output to room acoustics or personal preferences

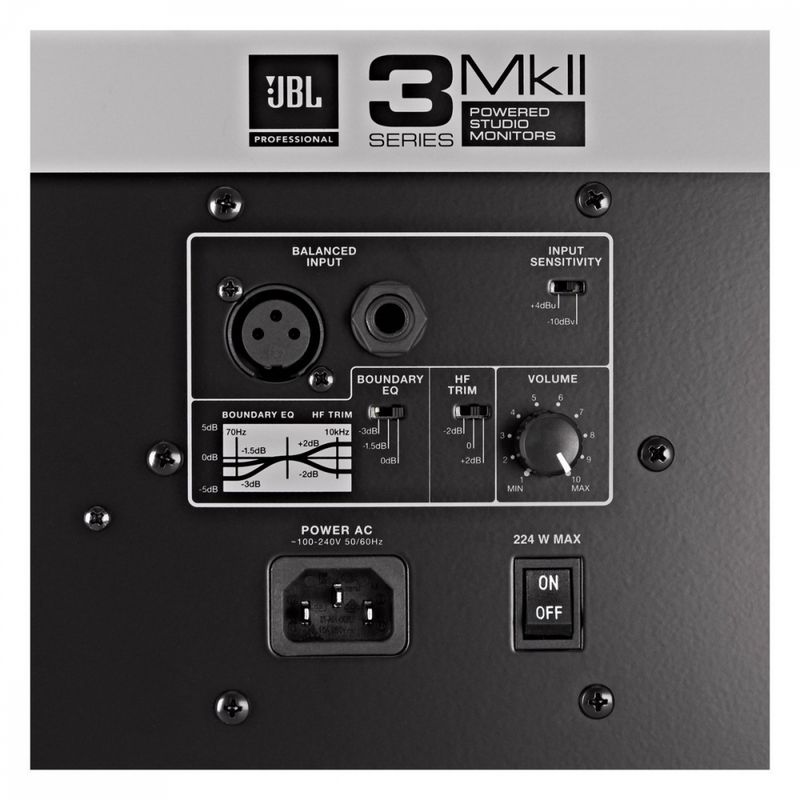

- Flexible connectivity with balanced XLR and 1/4" TRS inputs, +4dBu / -10dBV input-sensitivity switch and adjustable volume control
- Engineered to JBL Linear Spatial Reference design criteria for outstanding accuracy in any working space
- Strenuous JBL 100-hour full-power test ensures years of reliability
- Sleek, modern design provides a visual upgrade to any studio

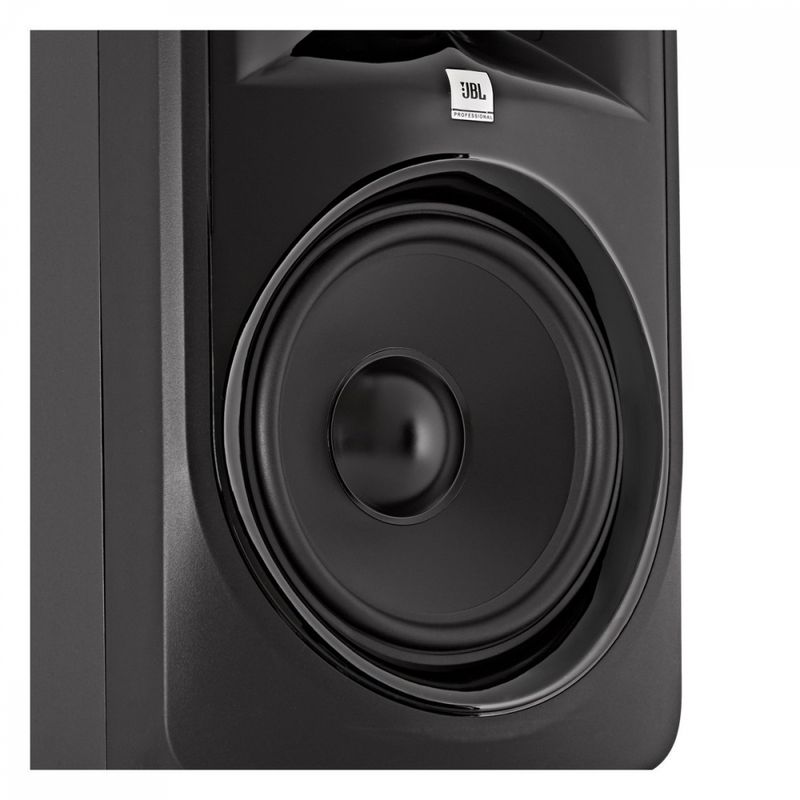

| LF DRIVER SIZE | 203mm (8") | |
| HF DRIVER SIZE | 25mm (1") | |
| HF DRIVER TYPE | Soft dome | |
| CROSSOVER | 1800Hz 4th order acoustic Linkwitz-Riley | |
| MAGNETICALLY SHIELDED | Yes | |
| INPUT SENSITIVITY (-10dBV INPUT) | 92dB / 1m | |
| POWER CONFIGURATION | Bi-amplified | |
| HF DRIVER POWER AMP | 56W, Class-D | |
| LF DRIVER POWER AMP | 56W, Class-D | |
| FREQUENCY RESPONSE (±3dB) | 45Hz – 20kHz | |
| FREQUENCY RANGE (-10dB) | 37Hz – 24kHz | |
| LOW FREQUENCY EXTENSION (-10dB) | 37Hz | |
| MAXIMUM CONTINUOUS SPL | 102dB | |
| MAXIMUM PEAK SPL | 112dB | |
| MAXIMUM PEAK INPUT LEVEL (-10dBV / +4dBu) | +6dBV / +20.3dBu | |
| SYSTEM DISTORTION CRITERIA | <10% THD at maximum output with full compressor / limiter engagement | |
| ELECTRICAL DISTORTION CRITERIA | 0.2% THD @ 1kHz / 2.83VRMS output; <1% THD @ 1kHz, full rated output | |
| SIGNAL TO NOISE RATIO | 75dBA (A-Weighted), 70dBr (unweighted), relative to 2.83VRMS output | |
| COVERAGE HORIZONTAL x VERTICAL | 120° x 90° | |
| ANALOG INPUT TYPES | 1 x XLR female, 1 x TRS female, balanced | |
| HF TRIM CONTROL | -2dB, 0dB, +2dB | |
| BOUNDARY EQ | LF Shelf @ 50Hz: -3dB, -1.5dB, 0dB | |
| AC INPUT VOLTAGE | 100 – 240VAC (±10%), 50 / 60Hz | |
| ENCLOSURE TYPE | Ported | |
| ENCLOSURE CONSTRUCTION | 15mm MDF | |
| ENCLOSURE FINISH | Matte black PVC | |
| BAFFLE CONSTRUCTION | Injection-molded structural ABS | |
| CABINET DIMENSIONS (H x W x D) | 419 x 254 x 308mm (16.5" x 10" x 12.1") | |
| DISPLAY CARTON (H x W x D) | 473 x 312 x 358mm (18.6" x 12.3" x 14") | |
| SHIPPING CARTON (H x W x D) | 491 x 326 x 372mm (19.3" x 12.8" x 14.6") | |
| NET WEIGHT | 8.1 kg (17.87 lbs) |
