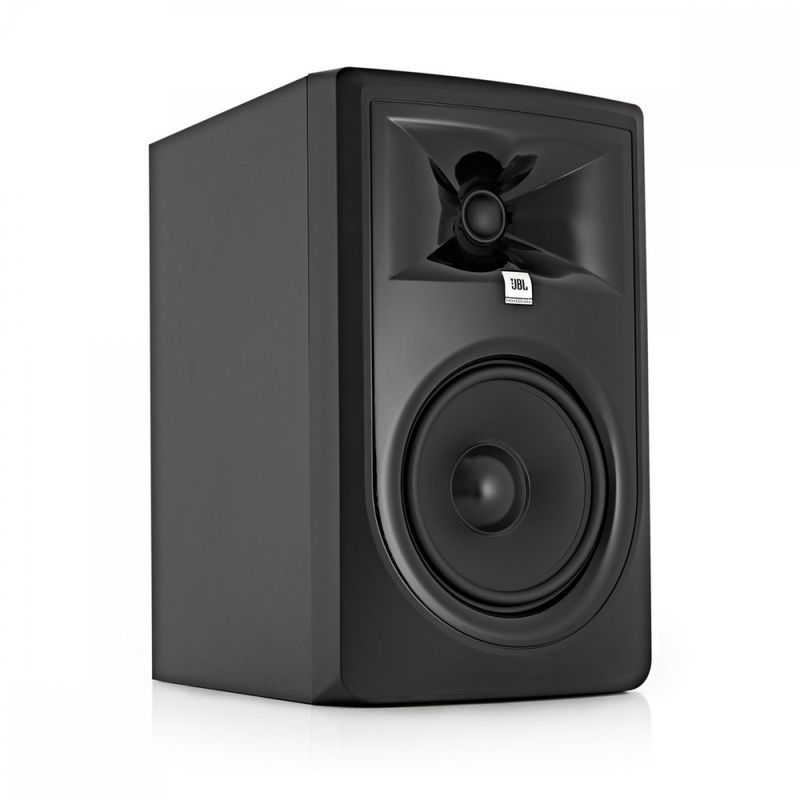

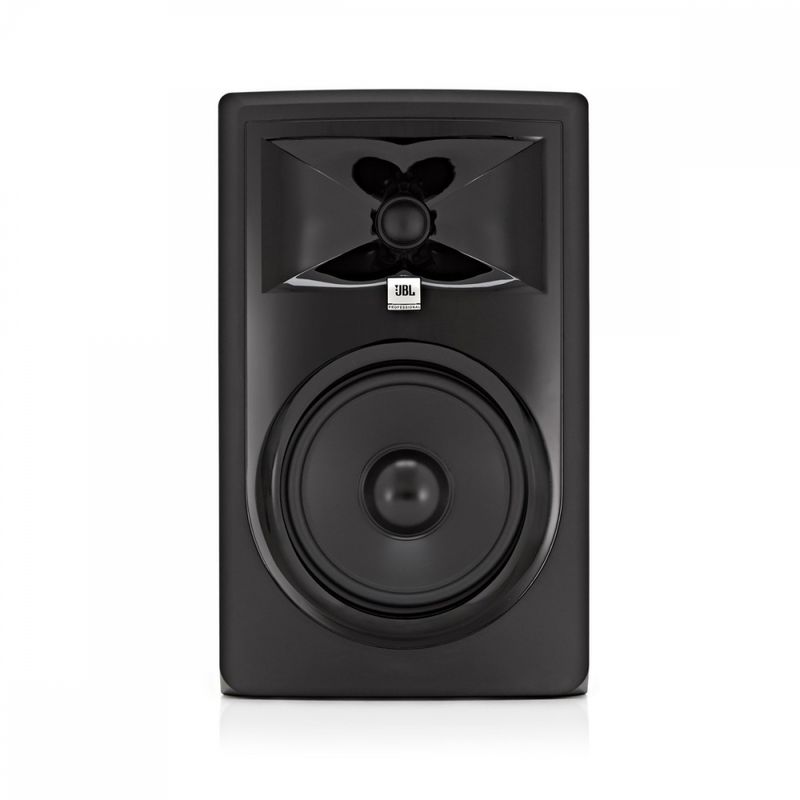

With the revolutionary JBL Image Control Waveguide and refined transducers, JBL 306P MkII offers stunning detail, precise imaging, a wide sweet spot and impressive dynamic range that enhances the mix capabilities of any modern workspace.
Leveraging patented technologies derived from the JBL 7 Series and M2 Master Reference Monitors and sporting a sleek, modern design, JBL 306P MkII delivers outstanding performance and an enjoyable mix experience at an accessible price
Features

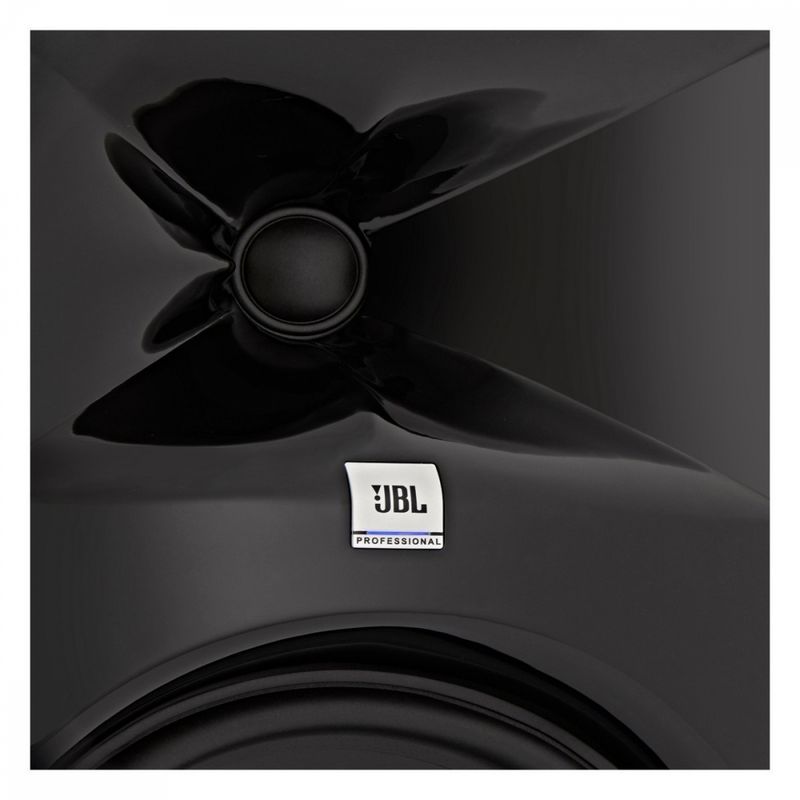

- Patented Image Control Waveguide for detailed imaging and a broad, room-friendly sweet spot

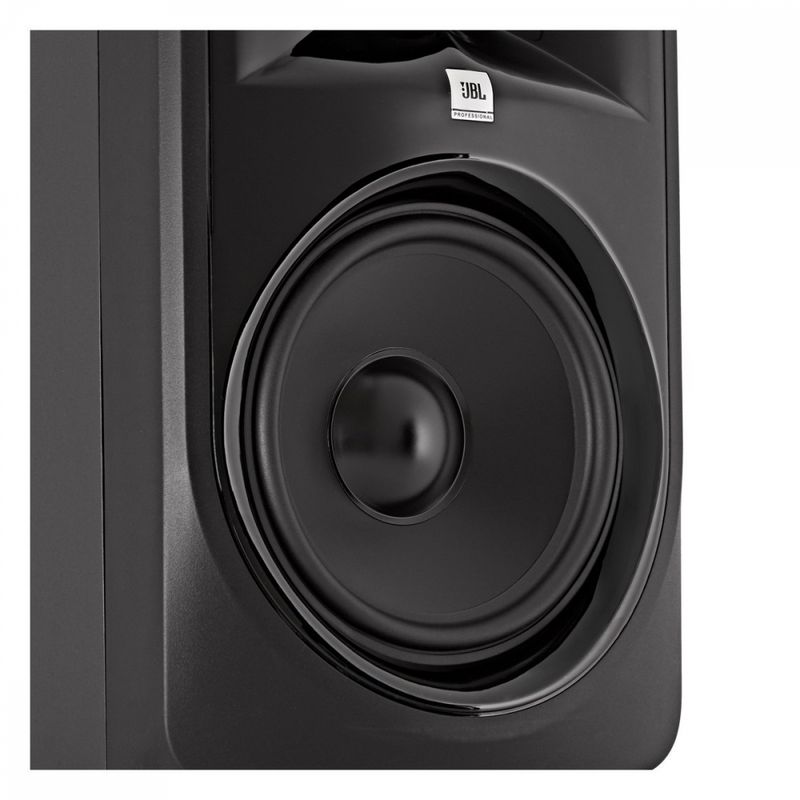

- Next-generation JBL transducers for optimized transient response and improved linearity

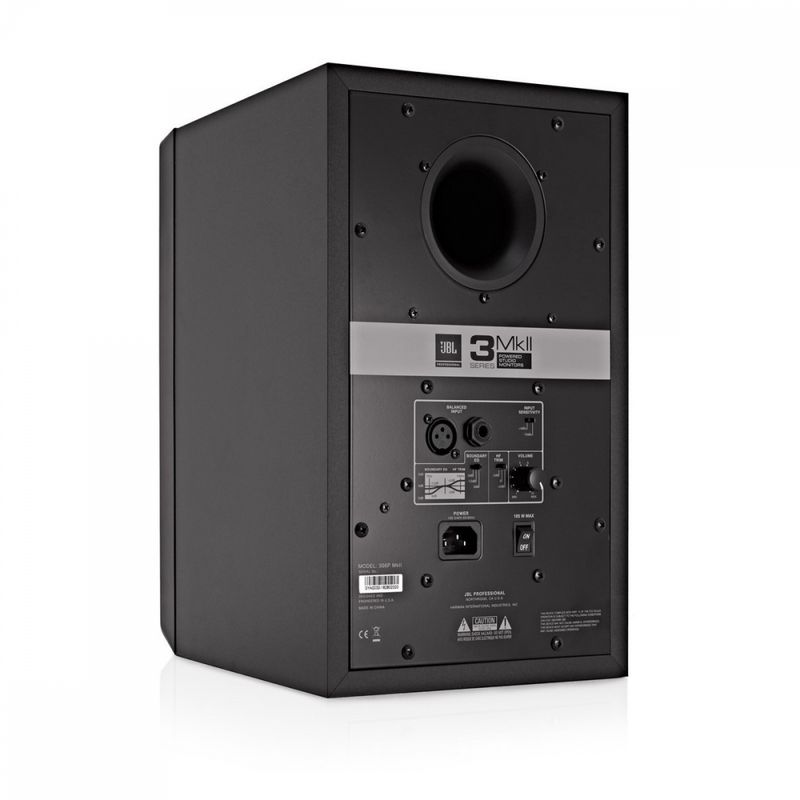

- Patented Slip Stream™ low-frequency port for superior bass performance at all playback levels
- Dual integrated, custom Class-D amplifiers provide 112 watts of power for high output and dynamic range
- New Boundary EQ settings compensate for low frequency variants introduced by the environment
- HF Trim switch adjusts high-frequency output to room acoustics or personal preferences

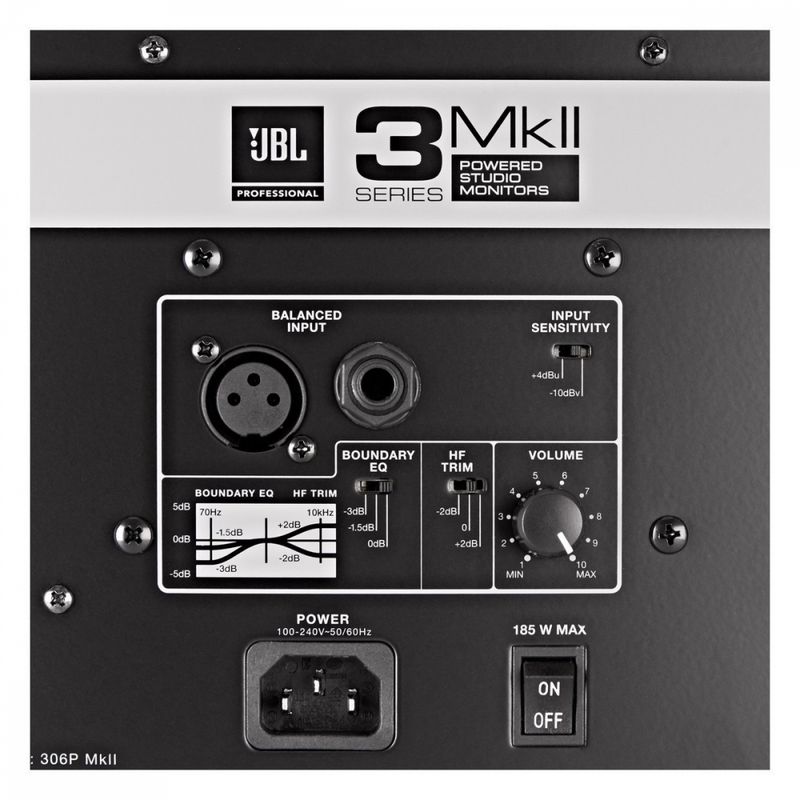

- Flexible connectivity with balanced XLR and 1/4" TRS inputs, +4dBu / -10dBV input-sensitivity switch and adjustable volume control
- Engineered to JBL Linear Spatial Reference design criteria for outstanding accuracy in any working space
- Strenuous JBL 100-hour full-power test ensures years of reliability
- Sleek, modern design provides a visual upgrade to any studio
|
LF Driver |
165mm (6.5") |
|
HF DRIVER SIZE |
25mm (1") |
|
HF DRIVER TYPE |
Soft dome |
|
Crossover |
1425Hz 4th order acoustic Linkwitz-Riley |
|
OK FOR USE NEAR MAGNETICALLY SENSITIVE EQUIPMENT |
|
|
INPUT SENSITIVITY (-10dBV INPUT) |
92dB / 1m |
|
Power Configuration |
Bi-amplified |
|
HF DRIVER POWER AMP |
56W, Class-D |
|
LF Driver Power Handling |
56W, Class D |
|
Frequency Response (±3 dB) |
47Hz – 20kHz |
|
Frequency Range (-10dB) |
39Hz – 24kHz |
|
LOW FREQUENCY EXTENSION (-10dB) |
39Hz |
|
Maximum Continuous SPL |
92dB |
|
Maximum Peak SPL |
110dB |
|
MAXIMUM PEAK INPUT LEVEL (-10dBV / +4dBu) |
+6dBV / +20.3dBu |
|
SYSTEM DISTORTION CRITERIA |
<10% THD at maximum output with full compressor / limiter engagement |
|
ELECTRICAL DISTORTION CRITERIA |
0.2% THD @ 1kHz / 2.83VRMS output; <1% THD @ 1kHz, full rated output |
|
Signal to Noise Ratio |
75dBA (A-Weighted), 70dBr (unweighted), relative to 2.83VRMS output |
|
Coverage Angle |
120° x 90° |
|
Input Connectors |
1 x XLR female, 1 x TRS female, balanced |
|
HF TRIM CONTROL |
-2dB, 0dB, +2dB |
|
BOUNDARY EQ |
LF Shelf @ 50Hz: -3dB, -1.5dB, 0dB |
|
AC INPUT VOLTAGE |
100 – 240VAC (±10%), 50 / 60Hz |
|
Enclosure |
Ported |
|
ENCLOSURE CONSTRUCTION |
15mm MDF |
|
ENCLOSURE FINISH |
Matte black PVC |
|
BAFFLE CONSTRUCTION |
Injection-molded structural ABS |
|
CABINET DIMENSIONS (H x W x D) |
361 x 224 x 282mm (14.2" x 8.8" x 11.1") |
|
DISPLAY CARTON (H x W x D) |
408 x 285 x 328mm (16.1" x 11.2" x 12.9") |
|
SHIPPING CARTON (H x W x D) |
418 x 292 x 338mm (16.5" x 11.5" x 13.3") |
|
Net Weight |
6.1 kg (13.42 lbs) |
|
SHIPPING GROSS WEIGHT |
7.25 kg (15.95 lbs) |
