Sample Rate Range
41 to 216kHz (MADI)
MADI I/O på fiber og coax, til Dante. SRC, WC og redundant PSU.
RedNet D64R is a 1U, 64x64 MADI interface for any Dante™ audio-over-IP
network.
Featuring network and power supply redundancy, RedNet D64R is the ideal
choice for providing MADI I/O in many critical-path applications, whether in
Post Production, Broadcast, Live Sound or the Recording Studio.
MADI connectivity is provided in the form of coax through two rear-panel
BNC connectors, as well as optical through an SC-Duplex connector.
Word Clock I/O allows RedNet D64R to provide clock to external equipment,
or alternatively to sync the Dante network to an external clock.
The word clock input can additionally be used as the sync source for the
unit´s sample rate converters, allowing asynchronous operation between the
network and the MADI domains.

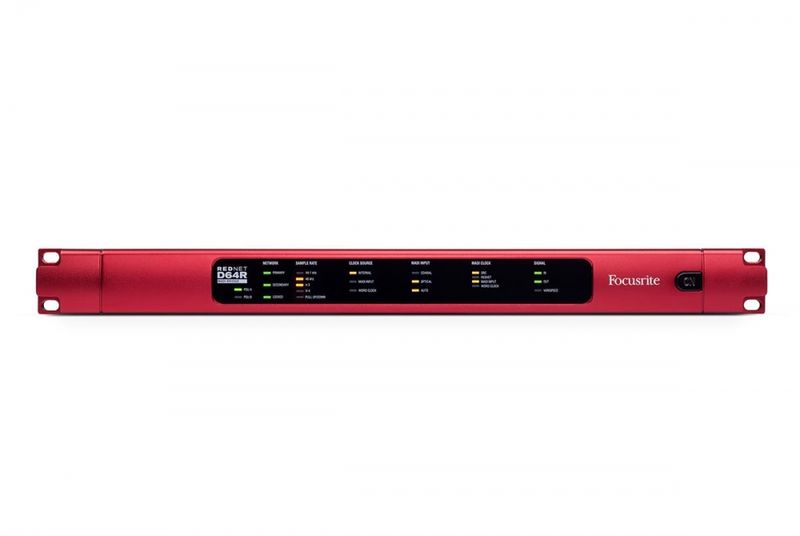

Front panel status LEDs provide visual feedback of signal presence,
SRC status, PSU status and more.
Sample Rate Convertors
Gain Error
-0.01dB
Dynamic Range
> 139dB (-60 dBFS method)
THD N
< -130dB (0.00003); 0 dBFS input
Latency
43 to 196 samples (Network and MADI sample rate dependent)
MADI Clock Sources
RedNet, MADI Input and Word Clock
Digital Performance
Supported Sample Rates
44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4 / -0.1 / 0.1 / 4.167) at 24 bit
Clock Sources
Internal, MADI or from Dante Network Master
External Word Clock Range
Nominal sample rate ±7.5

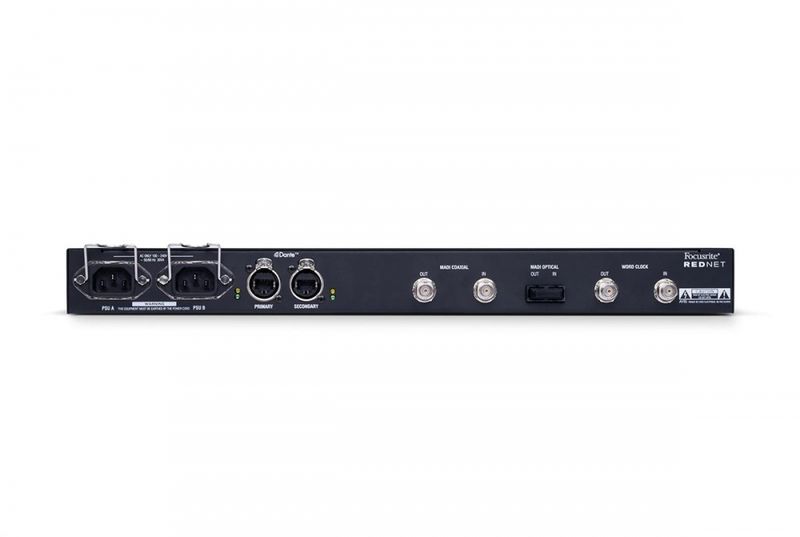

Rear Panel Connectivity
Electrical Standard
as per AES10:2008
Recommended Cable
OM1 adheres to AES10:2008 RedNet 6/ D64R supports OM2 if 3rd Party Device also supports OM2
Connector
Duplex-SC
Optical Standard
as per AES10:2008 (ISO/IEC 9314-3, FDDI, ANSI X3.166)
Word Clock Input
1 x BNC 75O port
Word Clock Output
1 x BNC 75O port
PSU
2 x IEC Inputs with retaining clips
Network
2 x etherCON NE8FBH-S, also compatible with standard RJ45 connectors
Front Panel Indicators
Primary PSU (A)
Green LED. Illuminates when an AC input is applied and all DC outputs are present.
Secondary PSU (B)
Green LED. Illuminates when an AC input is applied and all DC outputs are present
Primary Network
Green LED. Indicates that a network connection is present on primary port when in redundant mode
Secondary Network
Green LED. Indicates that a network connection is present on secondary port when in redundant mode
Network Locked
Green LED. When unit is network slave, shows valid network lock. When unit is network master
Sample Rate
Orange LED for each: 44.1 kHz, 48 kHz, x2, x4
Pull Up/Down
Orange LED. Indicates unit is set to operate on a Dante pull up/down domain
Clock Source
Orange LED for each: Internal, MADI Input and Word Clock.
MADI Input
Orange LED for each: Coaxial, Optical and Auto
MADI Clock
Orange LED for each: SRC, RedNet, MADI Input and Word Clock
Signal Indicators
2 Green LEDs, 1 input/1 output indicator. Illuminate @ -126dBFS
Status
Orange LED for each: SRC
Network Modes
Redundant
Allows unit to connect two independent networks
Switched
Connects both ports to integrated network switch allowing daisy-chaining of device
Dimensions
Height
44.5mm/ 1.75"
Width
482.6mm/ 19"
Depth
308mm/ 12.13"
Weight
Weight
4.32kg
Power
Power PSU
2 x Internal, 100-240V, 50/60Hz, consumption 30VA
Heat Performance
Operating Temperature
Operates at up to an ambient temperature of 50 degrees Celcius
