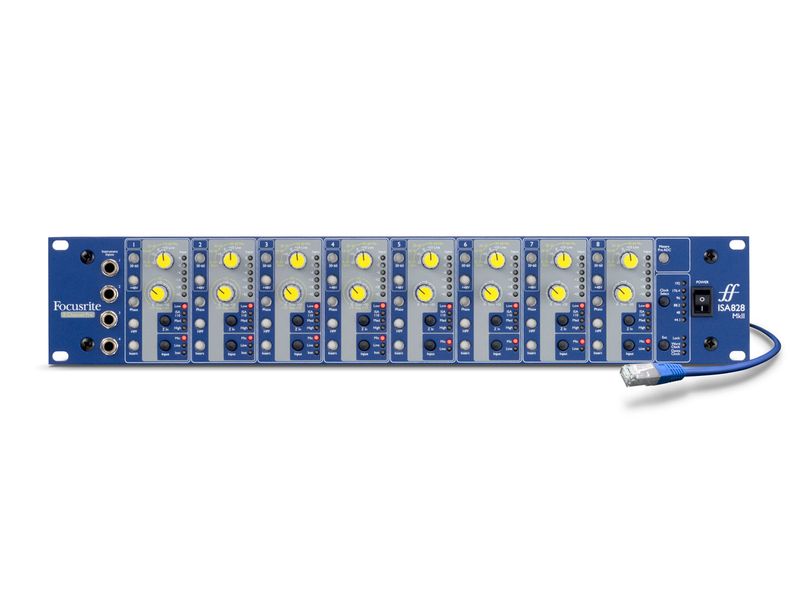

Up to 60dB of gain is available, with a further +20dB of continuously variable trim, providing a huge 80dB gain range. The high-pass filter has a fixed 75Hz frequency and 18dB / octave roll-off for minimising rumble, stand-borne noise and other low-frequency sounds. The ISA 828 MkII also features per-channel, six-segment LED meters, and switchable rear-panel insert points, which allow the use of inline processors such as compressors or EQs. The optional ISA ADN8 analogue-to-digital expansion card provides eight Dante, ADAT and AES3 outputs at sampling rates of up to 24-bit / 192kHz.
- Optional A-D card with up to 192kHz, 24-bit sampling offers high-quality digital audio conversion to Dante, ADAT and AES3
- Classic ISA mic preamp design featuring Lundahl LL1538 input transformer
- Switching power supply design allows for efficient and cool operation
- Front-panel instrument inputs to first four channels
- Line inputs with dedicated input connectors and front-panel select switch
- Switchable input impedance including classic ISA 110 setting
- High-pass filter with fixed 75Hz frequency and 18dB/octave roll-off
- Switchable insert points when used with A-D card
- Per-channel six-segment LED peak-level meters
- As with all Focusrite products, you'll also benefit from a three-year warranty
- Brainworx bx_console Focusrite – exclusive plug-in that faithfully captures the sound, feel and styling of the original Focusrite ISA 110 Equaliser and ISA 130 Dynamics Modules.
