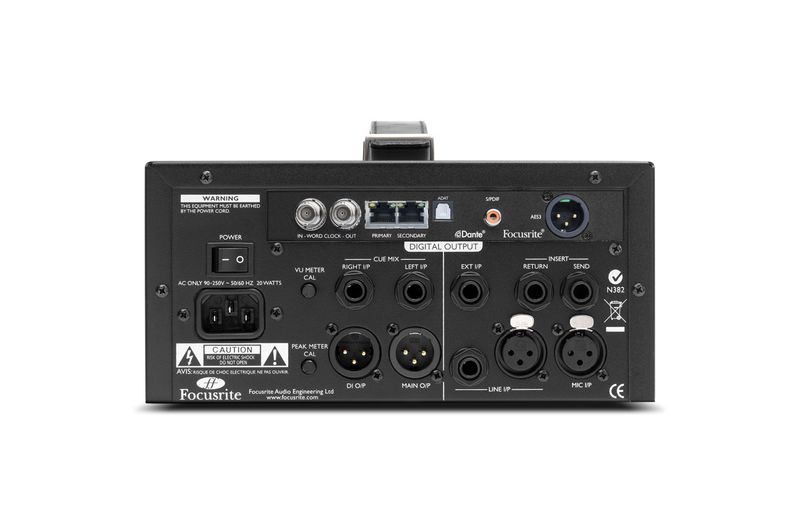

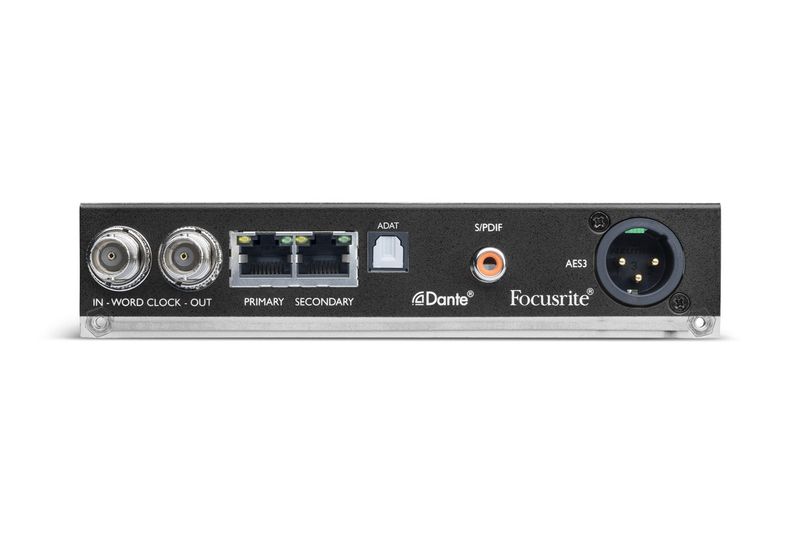

The card offers primary and secondary RJ45 Dante output ports, an XLR connector for AES3 output, a TOSLINK connector for ADAT output and RCA connector for S/PDIFoutput. Word Clock I/O on BNC connectors allows synchronisation to multiple digital sources. This also includes syncing the Dante network to house clock,or for syncing external equipment to the Dante network.
Dante outputs on the card provide ISA One with network connectivity to all Focusrite RedNet devices and Red interfaces, as well as any other Dante-enabled device from hundreds of manufacturers. Metering and settings are accessed through RedNet Control, routing is configured using Dante Controller.
Features
Two-channel analogue-to-digital converter for ISA One
Up to 24-bit/192kHz sample rate
Dante connectivity via Primary and Secondary Ethernet ports with redundancy and auto switchover in case of failure
Two-channel XLR connection for AES3 output
Two-channel RCA connection for S/PDIF output
Two-channel TOSLINK connector for ADAT output
Word Clock I/O on BNC connectors allows for synchronisation to multiple digital sources, for syncing the Dante network to house clock, or for syncing external equipment to the Dante network
RedNet Control and Dante Controller software allow Dante routing and control from a computer; no hardware patching required
Brainworx bx_console Focusrite – exclusive plug-in that faithfully captures the sound, feel and styling of the original Focusrite ISA 110 Equaliser and ISA 130 Dynamics Modules.
